LPDDR3 DETECTIVE FEATURES

  • Provides logic analyzer like deep transaction Listing and Waveform capture
  • Can store up to 1G of captured States at 1600MT/s
  • Continuous, real time analysis, not post-processing
  • Eye Detector guarantees valid data acquisition
  • Extensive Triggering and Storage Qualification allows precise insight
  • Protocol Violation Detector provides hundreds of simultaneous, real time tests to JEDEC specifications
  • Mode Register Listing provided
  • Supports Auto-Clock rate detect and clock stoppage
  • Connects to the target under test with Flying Lead, BGA interposers or a midbus probe
  • Integrated Microsoft Charts gives quick insight into large trace captures
  • Trigger In & Out allows the Detective to integrate with other test tools

LPDDR3 Detective State Listing
LPDDR3 Detective State Listing

LPDDR3 Detective Waveform
LPDDR3 Detective Waveform

LPDDR3 Detective Set-up

  • Easy Setup Guide steps the user through the process
  • DDR Detective automated setup calibrates to your target and bus speed in 90 seconds. This allows for use in marginal systems
  • Several CK operating points are supported automatically
  • Final MRS values are automatically loaded into protocol analysis tools.

LPDDR3 Detective Set Up
LPDDR3 Detective Set Up

LPDDR3 Detective Eye Detector
LPDDR3 Detective Eye Detector

LPDDR3 Detective MRS Listing
LPDDR3 Detective MRS Listing

LPDDR3 Detective Triggering and Store Qualification

Triggering Features

  • Full control of Trigger Position from 5% – 95% Post store.
  • Adjustable trace depth from 5K to 1G States
  • 2 stage Trigger (OR/AND)
  • External Trigger In and Out
  • Bit specific trigger set up ability across all A/C/C bus signals and all LPDDR3 protocol violations

Store Qualification Benefits

  • Use any Command as a store qualifier
  • Store only certain commands or just violations
  • Advanced Storage fliters out anything but accesses to a certain bank/rank

LPDDR3 Detective Trigger Set Up
LPDDR3 Detective Trigger Set Up



LPDDR3 Detective Storage Qualification
LPDDR3 Detective Storage Qualification

LPDDR3 Detective Protocol Violations

  • Covers over 60 tests on all banks and ranks running over 1000 checks continuously and simultaneously. You never miss a clock cycle.
  • Automatically calculates protocol parameters based on JEDEC specifications and loads into the protocol checking function
  • Allows user to override and enter other parameter values
  • Scoreboard display gives quick indication of what test is failing and displays running totals
  • Ability to enable and disable each compliance test

LPDDR3 Detective Protocol Violations Set Up
LPDDR3 Detective Protocol Violations Set Up

DDR3 Detective Protocol Violation Results
LPDDR3 Detective Protocol Violations Results

DDR3 Detective Performance Counters

Use real time counters to track multiple performance metrics:

  • Command and Data Bus utilization
  • Power management

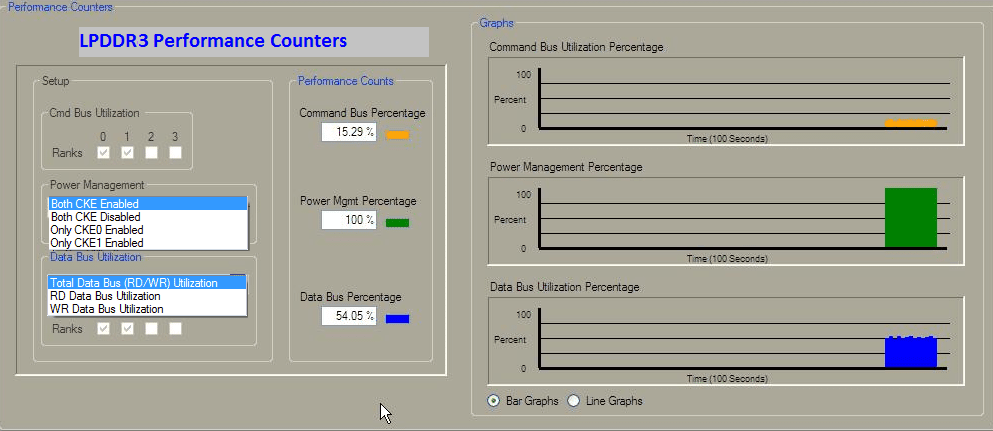

LPDDR3 Detective Performance Counters
LPDDR3 Detective Performance Counters

LPDDR3 Detective Probing

All 4 technologies DDR3, DDR4, LPDDR3 and LPDDR4 in one box with interchangeable probing choices!

  • SODIMM Interposer – DDR4 and DDR3, also LPDDR4 on module
  • BGA Interposer – various package formats for DDR4, DDR3, LPDDR4 and LPDDR3 – Contact us
  • Flying Lead – High speed coax wire solderable to pcb features
  • Mid-bus Connector-less probing – Industry standard “Soft-Touch Pro” compatible

The DDR Detective® gives the phrase ‘cost effective’ new meaning!

BGA Interposer:

  • Quick and easy connection to most Keysight logic analyzer Chip Interposers
  • Scope Interposers can be used with Flying lead cable
  • Contact us on package requirements

Flying Lead cable:

  • Quick and easy connection to Keysight Scope Chip Interposers
  • Can also be soldered to pcb features
  • 38 AWG wire

Mid-Bus Probe:

  • Single, dual and 3-head configuration available
  • Midbus probing is ideal for embedded applications where no DIMM or SODIMM slot is present
  • Connector-less midbus footprint can remain as part of the design throughout product life for service

LPDDR3 Detective FS2826 1 Head Mid-bus cable
LPDDR3 Detective FS2826 1 Head Mid-bus cable

LPDDR3 Detective FS2827 Flying Lead Probe on Scope BGA Interposer
LPDDR3 Detective FS2827 Flying Lead Probe on Scope BGA Interposer

LPDDR3 Detective Ordering Information

  • FS2801 DDR Detective supports LPDDR3 with LP Violations/Performance
  • FS2800 DDR3/DDR4 Trace DDR Detective
  • FS2821 Add LPDDR3 FS2801 functionality to FS2800

Probing Options

  • FS2826 Midbus single head Soft Touch Pro adapter for the FS2800
  • FS2828 Midbus two head Soft Touch Pro adapter for the FS2800
  • FS2829 Midbus three head Soft Touch Pro adapter for the FS2800



  • FS2827 Flying Lead for use with Keysight scope interposers and FS2800
