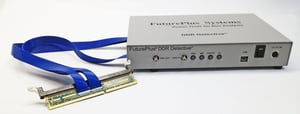

LPDDR4 DETECTIVE FEATURES

  • Provides logic analyzer like deep transaction Listing and Waveform capture
  • Can store up to 1G of captured States at up to 3200MT/s
  • Continuous, real time analysis, not post-processing
  • 2D (voltage & time) Eye Detector guarantees valid data acquisition on each signal
  • Extensive Triggering and Storage Qualification allows precise insight
  • Protocol Violation Detector provides hundreds of simultaneous, real time tests to JEDEC specifications
  • Mode Register Listing provided
  • Supports Auto-Clock rate detect and clock stoppage
  • Connects to the target under test with Flying Lead, BGA interposers or a midbus probe
  • Integrated Microsoft Charts gives quick insight into large trace captures
  • Trigger In & Out allows the Detective to integrate with other test tools

LPDDR4 Detective FIltered State Listing
LPDDR4 Detective FIltered State Listing

LPDDR4 Detective Filtered Waveform
LPDDR4 Detective Filtered Waveform

TimeLine
TimeLine

Post Process Filter
Post Process Filter

Find Tool
Find Tool

LPDDR4 Detective Set-up

  • Easy Setup Guide steps the user through the process
  • DDR Detective automated setup calibrates to your target and bus speed in 90 seconds. This allows for use in marginal systems
  • Several CK operating points are supported automatically
  • Final MRS values are automatically loaded into protocol analysis tools.

LPDDR5 Setup
LPDDR5 Setup

LPDDR4 Detective Eye Detector
LPDDR4 Detective Eye Detector

LPDDR4 Detective MRS Listing
LPDDR4 Detective MRS Listing

LPDDR4 Detective Triggering and Store Qualification

Triggering Features

  • Full control of Trigger Position from 5% – 95% Post store.
  • Adjustable trace depth from 5K to 512M States
  • No need to define 4 states for a Command trigger, the Detective has them pre-defined.
  • External Trigger In and Out
  • Bit specific trigger set up ability across all A/C/C Commands and bus signals or LPDDR4 protocol violations

Store Qualification Benefits

  • Use any transaction with address as a store qualifier
  • Store only certain commands or just violations
  • Store only Accesses to a certain bank group/bank/rank

LPDDR4 Detective Trigger Set Up
LPDDR4 Detective Trigger Set Up



LPDDR4 Detective Store Qualification
LPDDR4 Detective Store Qualification

LPDDR4 Detective Protocol Violations

  • Covers over 60 tests on all banks and ranks running over 1000 checks continuously and simultaneously. You never miss a clock cycle.
  • Automatically calculates protocol parameters based on JEDEC specifications and loads into the protocol checking function.
  • Allows user to override and enter other parameter values
  • Scoreboard display gives quick indication of what test is failing and displays running totals
  • Ability to enable and disable each compliance test

LPDDR4 Detective Protocol Violations Set Up
LPDDR4 Detective Protocol Violations Set Up

LPDDR4 Detective Protocol Violations Results
LPDDR4 Detective Protocol Violations Results

LPDDR4 Detective Performance Counters

Use real time counters to track multiple performance metrics:

  • Command and Data Bus utilization
  • Power management

LPDDR4 Detective Performance Counters
LPDDR4 Detective Performance Counters

LPDDR4 Detective Probing

All 4 technologies DDR3, DDR4, LPDDR3 and LPDDR4 in one box with interchangeable probing choices!

  • SODIMM Interposer – DDR4 and DDR3, also LPDDR4 on module
  • BGA Interposer – various package formats for DDR4, DDR3, LPDDR4 and LPDDR3 – Contact us
  • Flying Lead – High speed coax wire solderable to pcb features
  • Mid-bus Connector-less probing – Industry standard “Soft-Touch Pro” compatible

The DDR Detective® gives the phrase ‘cost effective’ new meaning!

LPDDR4 on DDR4 SODIMM Interposer:

  • JEDEC Compliant 260 pin
  • Operation up to 3200MT/s
  • Interposer design saves a slot
  • Rigid/flex design allows for use in both RVS and STD connectors.
  • All signals are probed passively
  • Electrically extends the bus approximately 2.0 inch
  • 72 bit operation supported
  • Simultaneous connection to Keysight Logic Analyzer available

BGA Interposer:

  • Quick and easy connection to most Keysight logic analyzer Chip Interposers
  • Scope Interposers can be used with Flying lead cable
  • Contact us on package requirements

Flying Lead cable:

  • Quick and easy connection to Keysight Scope Chip Interposers
  • Can also be soldered to pcb features
  • 38 AWG wire

Mid-Bus Probe:

  • Single, dual and 3-head configuration available
  • Midbus probing is ideal for embedded applications where no DIMM or SODIMM slot is present
  • Connector-less midbus footprint can remain as part of the design throughout product life for service

2 Head Mid-Bus cable FS2826
2 Head Mid-Bus cable FS2826

DDR4 Detective SO-DIMM probe FS2824
DDR4 Detective SO-DIMM probe FS2824

LPDDR4 Detective BGA probe with FS2425 cable
LPDDR4 Detective BGA probe with FS2425 cable

LPDDR4 Detective Flying Lead FS2827 w_ scope BGA
LPDDR4 Detective Flying Lead FS2827 w_ scope BGA

LPDDR4_BGA_FL
LPDDR4_BGA_FL

LPDDR4 testing
LPDDR4 testing

DDR4 Detective Ordering Information

  • FS2800 DDR3/DDR4 Trace DDR Detective
  • FS2805 Add LPDDR4 FS2804 functionality to the FS2800
  • FS2804 LPDDR4 Trace Detective

Probing Options

  • FS2424 DDR3 SO-DIMM A/C/C Interposer for DDR Detective (can support LPDDRx on SO-DIMM)
  • FS2421 DDR4 DIMM Satellite* Interposer for DDR Detective



  • FS2826 Midbus single head Soft Touch Pro adapter for the FS2800
  • FS2828 Midbus two head Soft Touch Pro adapter for the FS2800
  • FS2829 Midbus three head Soft Touch Pro adapter for the FS2800



  • FS2827 Flying Lead for use with Keysight scope interposers and FS2800



  • FS2425 DDR3 BGA Cable Adapter and SW upgrade to support Keysight BGA LA Interposer



Probing Options that include U4154A/B and U4164A Logic Analyzer connections

  • FS2436 DDR4 SO-DIMM Interposer A/C/C/DQ FS280x and LA
