DDR3 DETECTIVE FEATURES

  • Provides logic analyzer like deep transaction Listing and Waveform capture
  • Can store up to 1G of captured States
  • Continuous, real time analysis, not post-processing
  • Eye Detector guarantees valid data acquisition
  • Extensive Triggering and Storage Qualification allows precise insight
  • Protocol Violation Detector provides hundreds of simultaneous, real time tests to JEDEC specifications
  • Row Hammer Analysis for potential data corruption
  • Interactions among up to 8 ranks, over two slots are analyzed.
  • Mode Register Listing provided
  • Supports Auto-Clock rate detect and clock stoppage Connects to the target under test with DIMM, SO-DIMM, and BGA interposers or a midbus probe
  • Integrated Microsoft Charts gives quick insight into large trace captures
  • Trigger In & Out allows the Detective to integrate with other test tools

DDR3 Detective State Listing
DDR3 Detective State Listing

DDR3 Detective Waveform
DDR3 Detective Waveform

DDR3 Detective Set-up

  • Easy Setup Guide steps the user through the process
  • DDR Detective automated setup calibrates to your target and bus speed in 90 seconds. This allows for use in marginal systems
  • Final MRS values are automatically loaded into protocol analysis tools.

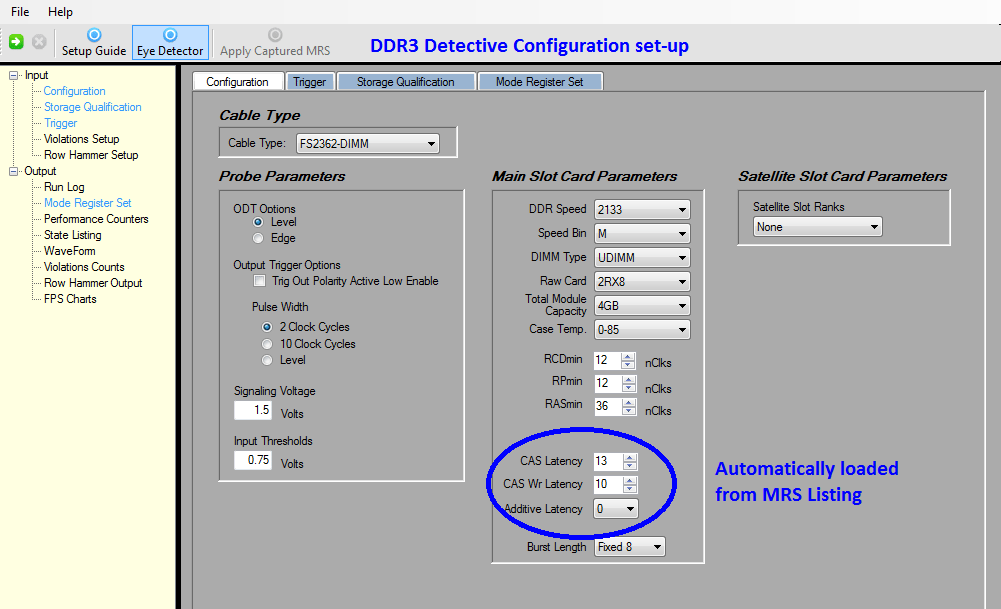

DDR3 Detective Configuration
DDR3 Detective Configuration

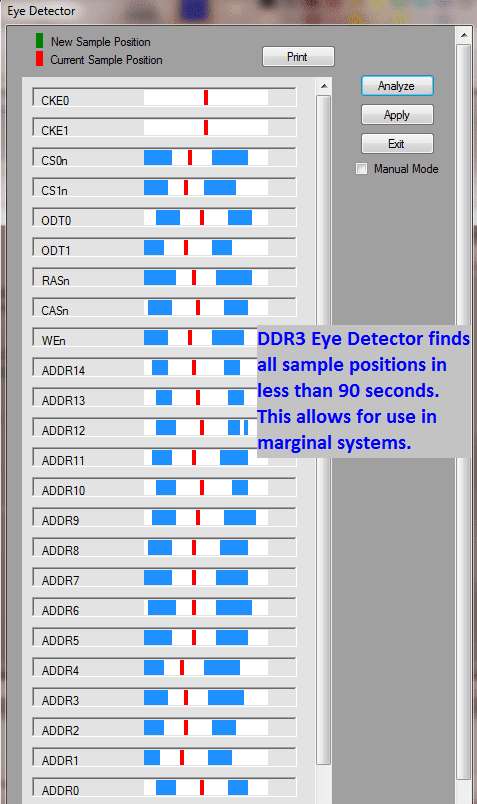

DDR3 Detective Eye Detector results
DDR3 Detective Eye Detector results

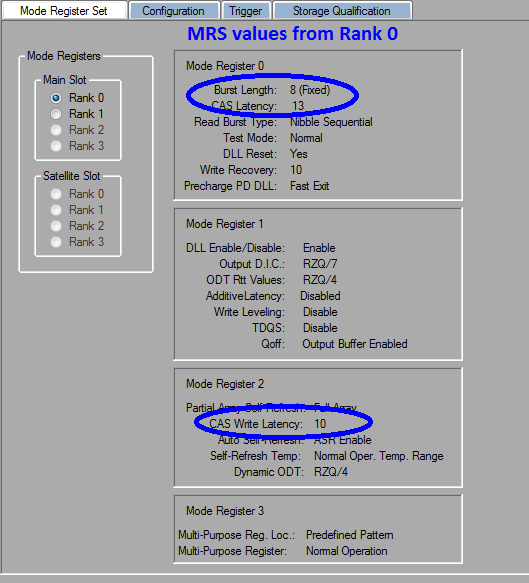

DDR3 Detective MRS Listing
DDR3 Detective MRS Listing

DDR3 Detective Triggering and Store Qualification

Triggering Features

  • Full control of Trigger Position from 5% – 95% Post store.
  • Adjustable trace depth from 5K to 512M States (1G w/o time stamps)
  • External Trigger In and Out
  • Bit specific trigger set up ability across all A/C/C bus signals and all DDR4 protocol violations

Store Qualification Benefits

  • Use any transaction with address as a store qualifier
  • Store only certain commands or just violations
  • Store only Accesses to a certain bank group/bank/rank

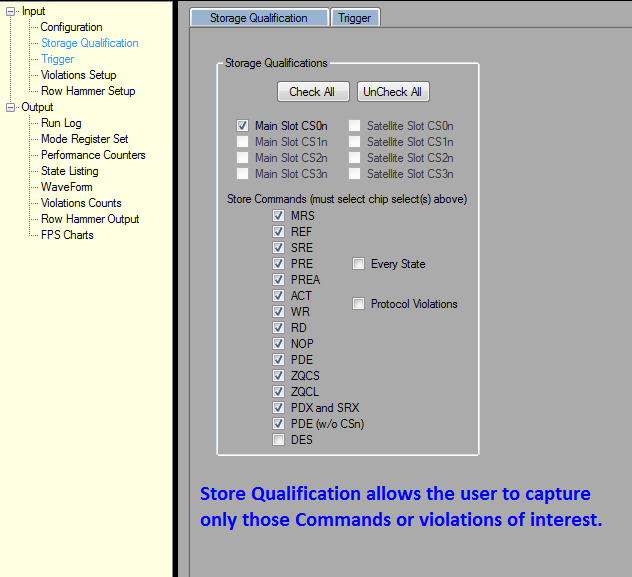

DDR3 Detective Store Qualification set up
DDR3 Detective Store Qualification set up

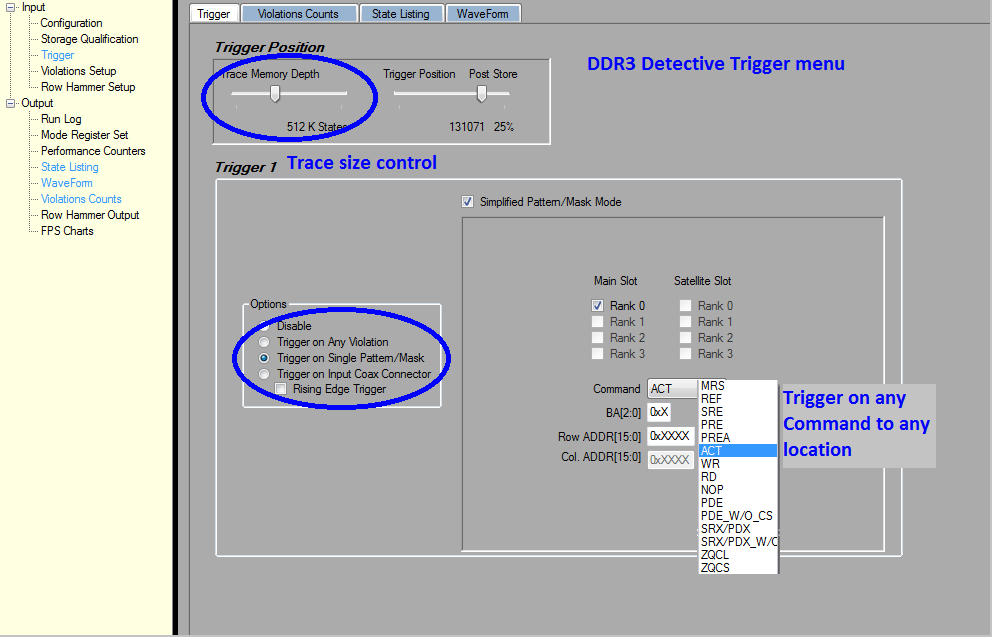

DDR3-Detective-Trigger-set-up
DDR3 Detective Trigger set up

DDR3 Detective Protocol Violations

  • Covers 65 tests on all banks and ranks running over 1000 checks continuously and simultaneously
  • Automatically calculates protocol parameters based on JEDEC specifications and loads into the protocol checking function
  • Allows user to override and enter other parameter values
  • Scoreboard display gives quick indication of what test is failing and displays running totals
  • Ability to enable and disable each compliance test

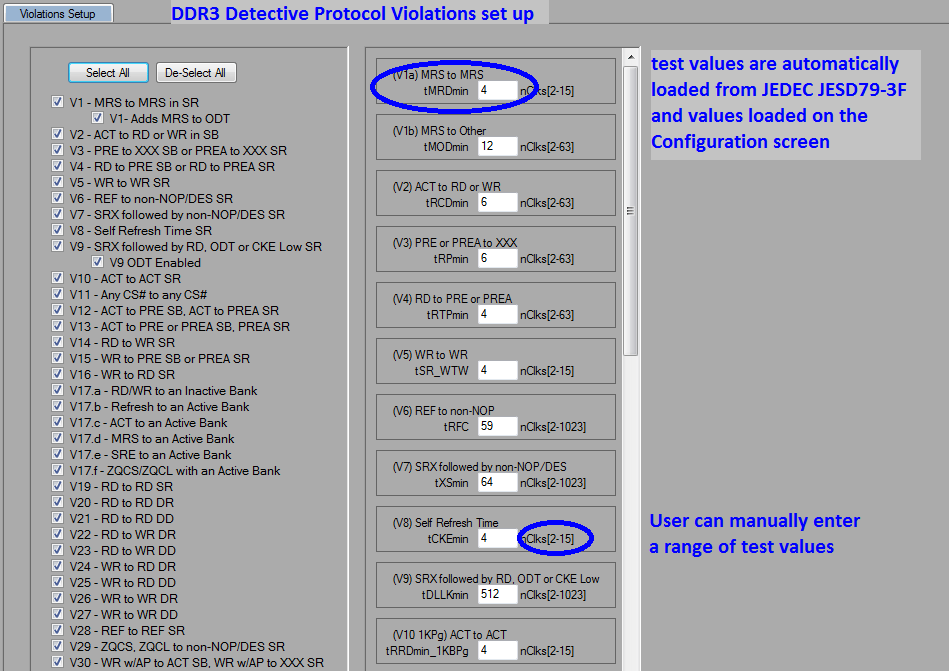

DDR3 Detective Protocol Violations Set Up
DDR3 Detective Protocol Violations Set Up

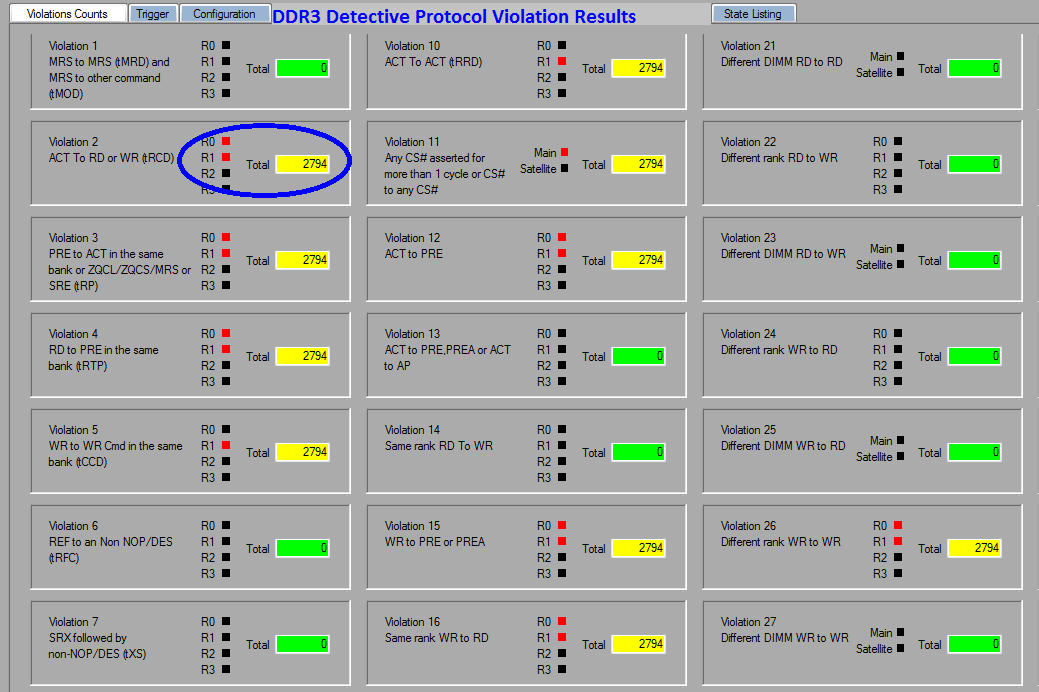

DDR3 Detective Protocol Violation Results
DDR3 Detective Protocol Violation Results

DDR3 Detective Row Hammer Detection

  • Helps find those unexplained memory errors!
  • Tracks and counts every ACTIVATE command
  • Indicates if thresholds are crossed
  • Output displays rank and bank of rows that show excessive ACTIVATE commands
  • Exact Row Address indicated
  • Address Range feature makes Row Hammer Detection even more accurate!

See a video of this tool in action: https://www.youtube.com/watch?v=6MTXNqkzxlc

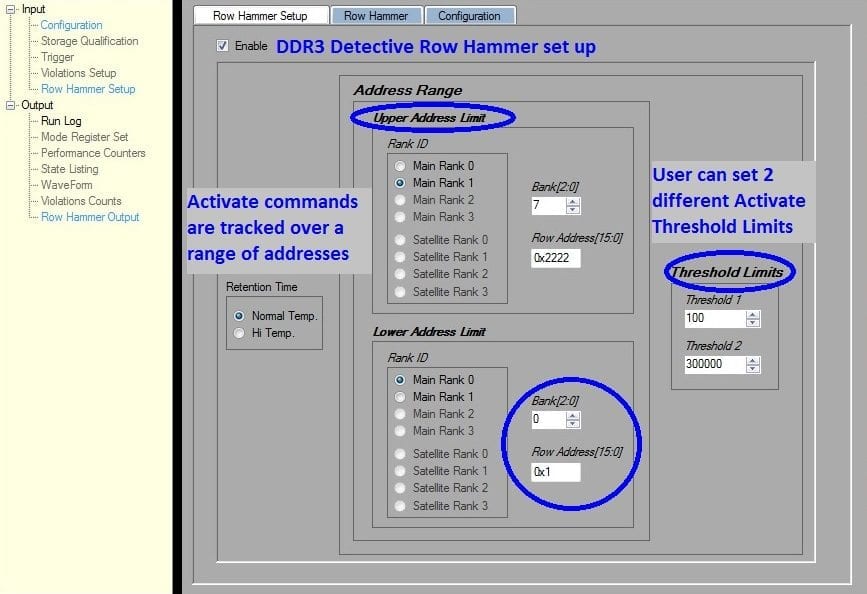

DDR3 Detective Row Hammer set up
DDR3 Detective Row Hammer set up

DDR3 Detective Row Hammer output
DDR3 Detective Row Hammer output

DDR3 Detective Performance Counters

Use real time counters to track multiple performance metrics:

  • Command and Data Bus utilization
  • Power management

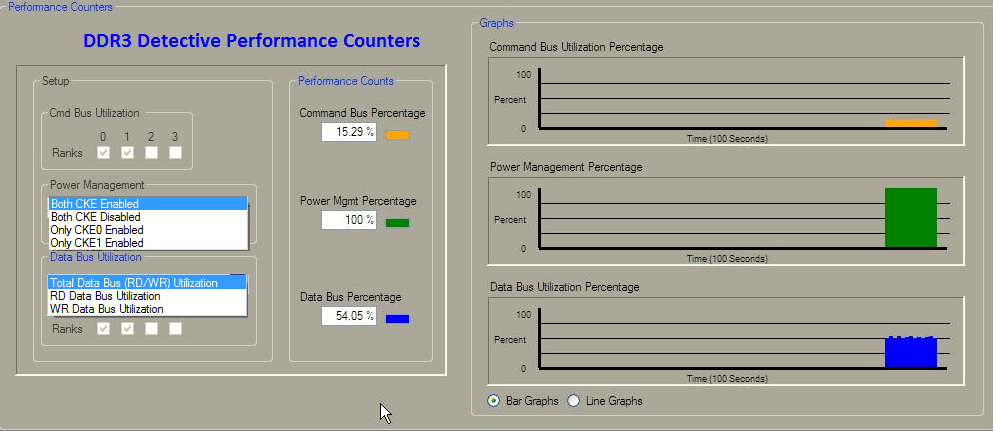

DDR3 Detective Performance Counters with Text
DDR3 Detective Performance Counters with Text

DDR3 Detective Probing

All 4 technologies DDR3, DDR4, LPDDR3 and LPDDR4 in one box with interchangeable probing choices!

  • DIMM Interposer – DDR4 and DDR3
  • SODIMM Interposer – DDR4 and DDR3, also LPDDR4 on module
  • BGA Interposer – various package formats for DDR4, DDR3, LPDDR4 and LPDDR3 – Contact us
  • Flying Lead – High speed coax wire solderable to pcb features
  • Mid-bus Connector-less probing – Industry standard “Soft-Touch Pro” compatible

The DDR Detective® gives the phrase ‘cost effective’ new meaning!

DDR3 DIMM Interposer:

  • JEDEC Compliant Connector
  • Interposer design saves a slot
  • Operation up to 2400MT/s
  • All signals are probed passively
  • Electrically extends the bus approximately 1.0 inch
  • 72 bit operation supported
  • UDIMM, RDIMM, and LRDIMM supported
  • Simultaneous connection to Keysight Logic Analyzer available

DDR3 SODIMM Interposer:

  • JEDEC Compliant
  • Operation up to 2400MT/s
  • Interposer design saves a slot.
  • Rigid/flex design allows for use in both RVS and STD connectors.
  • All signals are probed passively
  • Electrically extends the bus approximately 2.0 inch
  • Simultaneous connection to Keysight Logic Analyzer available

BGA Interposer:

  • Quick and easy connection to most Keysight logic analyzer Chip Interposers
  • Scope Interposers can be used with Flying lead cable
  • Contact us on package requirements

Flying Lead cable:

  • Quick and easy connection to Keysight Scope Chip Interposers
  • Can also be soldered to pcb features
  • 38 AWG wire

Mid-Bus Probe:

  • Single, dual and 3-head configuration available
  • Midbus probing is ideal for embedded applications where no DIMM or SODIMM slot is present
  • Connector-less midbus footprint can remain as part of the design throughout product life for service

2 Head Mid-Bus Cable FS2826
2 Head Mid-Bus Cable FS2826

DDR3 Detective BGA probe with FS2425 Cable
DDR3 Detective BGA probe with FS2425 Cable

DDR3 Detective Flying Lead FS2827 with Scope BGA
DDR3 Detective Flying Lead FS2827 with Scope BGA

DDR3 Detective SO-DIMM Probe FS2424
DDR3 Detective SO-DIMM Probe FS2424

FS2363 DDR3 DIMM Probe
FS2363 DDR3 DIMM Probe

DDR3 Detective Ordering Information

  • FS2800 DDR3/DDR4 Trace DDR Detective
  • FS2805 Add LPDDR4 FS2804 functionality to the FS2800
  • FS2821 Add FS2801 LPDDR3 functionality to the FS2800

Standalone Probing Options

  • FS2362 DDR3 DIMM A/C/C Interposer for DDR Detective
  • FS2424 DDR3 SO-DIMM A/C/C Interposer for DDR Detective (can support LPDDRx on SO-DIMM)
  • FS2421 DDR4 DIMM Satellite* Interposer for DDR Detective
  • FS2422 DDR3 SO-DIMM Satellite* Interposer for DDR Detective

* Satellite gives Slot 2 Probing of Clock and Control signals for same channel

  • FS2826 Midbus single head Soft Touch Pro adapter for the FS2800
  • FS2828 Midbus two head Soft Touch Pro adapter for the FS2800
  • FS2829 Midbus three head Soft Touch Pro adapter for the FS2800



  • FS2827 Flying Lead for use with Keysight scope interposers and FS2800



  • FS2425 DDR3 BGA Cable Adapter and SW upgrade to support Keysight BGA LA Interposer



Probing Options that include U4154A/B and U4164A Logic Analyzer connections

  • FS2362 DDR4 DIMM Interposer A/C/C/DQ FS280x and LA
  • FS2436 DDR4 SO-DIMM Interposer A/C/C/DQ FS280x and LA
